Rais Nexo 100 Wood burner
Description
RAIS Nexo 100 Wood Burning Stove
Sharp lines. Big glass. Sophisticated performance.
The RAIS Nexo 100 is a clean-lined, architecturally inspired wood burning stove that blends minimalist Scandinavian design with top-tier performance. With its squared profile, large glass front, and precision detailing, it’s perfect for contemporary interiors, open-plan rooms, or homes with a refined aesthetic.
Rated at 5.0kW nominal heat output, the Nexo 100 is designed for efficient, room-friendly heat and is fully DEFRA exempt and Ecodesign 2022 compliant, making it ideal for use in urban and smoke control areas. It also offers extensive personalisation options, allowing you to choose from a range of finishes, handles, and flue placements.
🔥 Key Features:
-
5.0kW nominal heat output – suited to most medium-sized rooms
-
Large panoramic glass front for a commanding flame view
-
Ecodesign 2022 compliant – clean, low-emission combustion
-
DEFRA Approved – suitable for smoke control zones
-
Optional external air supply kit – ideal for modern airtight homes
-

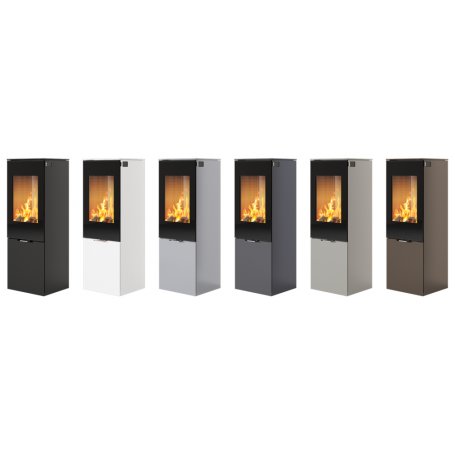

Choose from multiple colours: Black, Platinum, Nickel, or custom RAL
-
Customise handle and flue outlet position
-

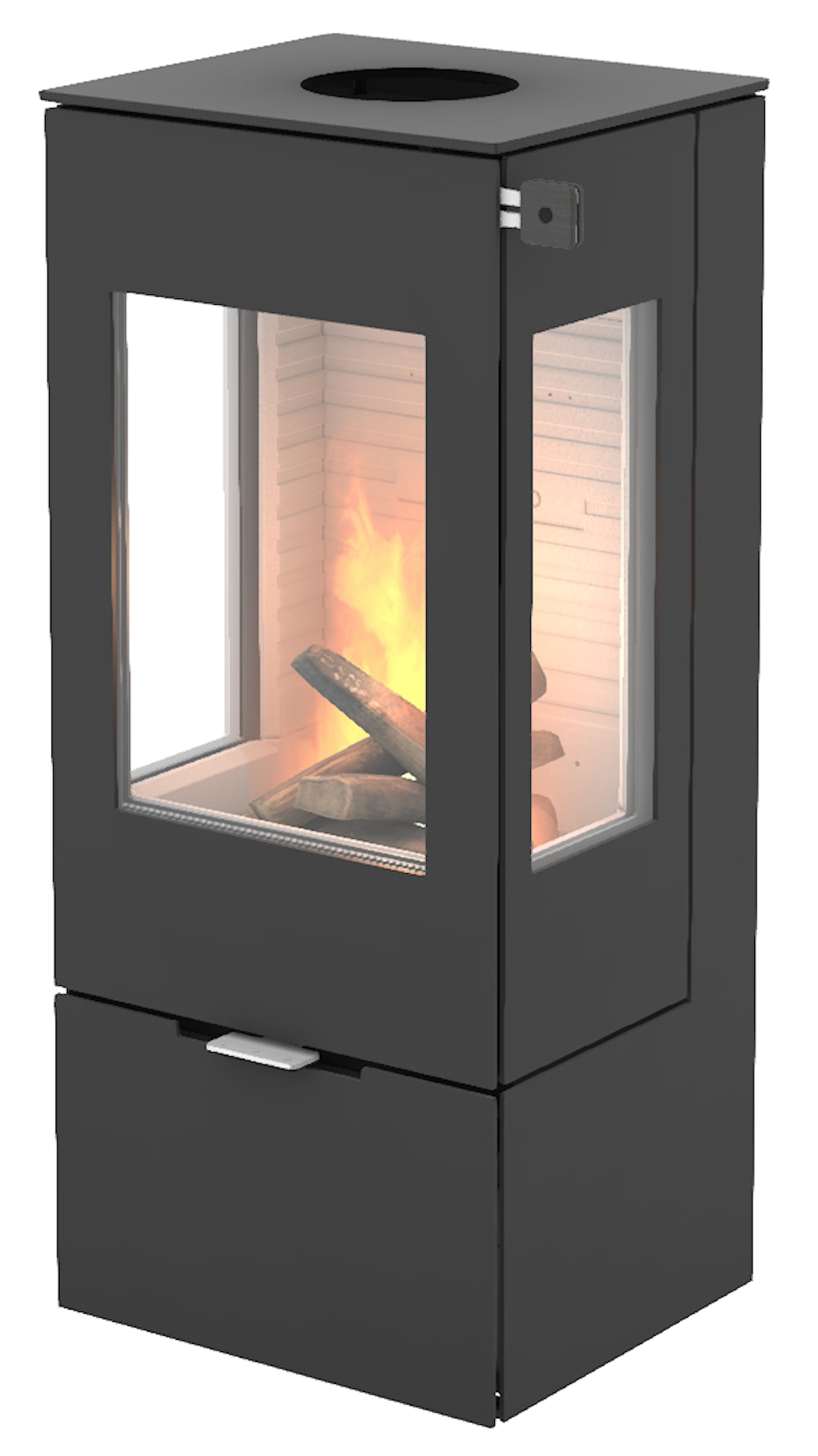

Optional side glass panels for 180° flame view
-
Compatible with 12mm glass or stone hearths
-
Optional turntable base for flexible orientation
📐 Dimensions (Standard model without side glass):
| Measurement | Size (mm) |
|---|---|
| Height | 1000 mm |
| Width | 446 mm |
| Depth | 398 mm |
| Flue Diameter | 150 mm (6″) |
| Weight | Approx. 100 kg |
⚙️ Technical Overview:
| Feature | Specification |
|---|---|
| Fuel Type | Wood only |
| Nominal Heat Output | 5.0kW |
| Output Range | 3–7kW |
| Efficiency | Up to 80% |
| Energy Rating | A+ |
| DEFRA Approved | Yes |
| Ecodesign Compliant | Yes (2022 Ready) |
| Construction | Steel body with ceramic glass door |
| Flue Outlet | Top or rear |
| Hearth Requirement | 12mm compatible |
| Air Supply | External air compatible |
🏡 Perfect For:
-
Modern or architect-designed homes
-
Smoke control areas (urban installs)
-
Clean-lined fireplace surrounds or freestanding setups
-
Homeowners wanting customisable high-end design
📞 Designing a full package?
We supply and install the full RAIS range with glass or stone hearths, flue kits, and wall chambers. Let us know your room layout and design goals — we’ll help build the perfect setup.
📍 Get in touch for lead times, pricing, and design support.
