ACR Oakdale 5kw Multi-Fuel Stove
Description

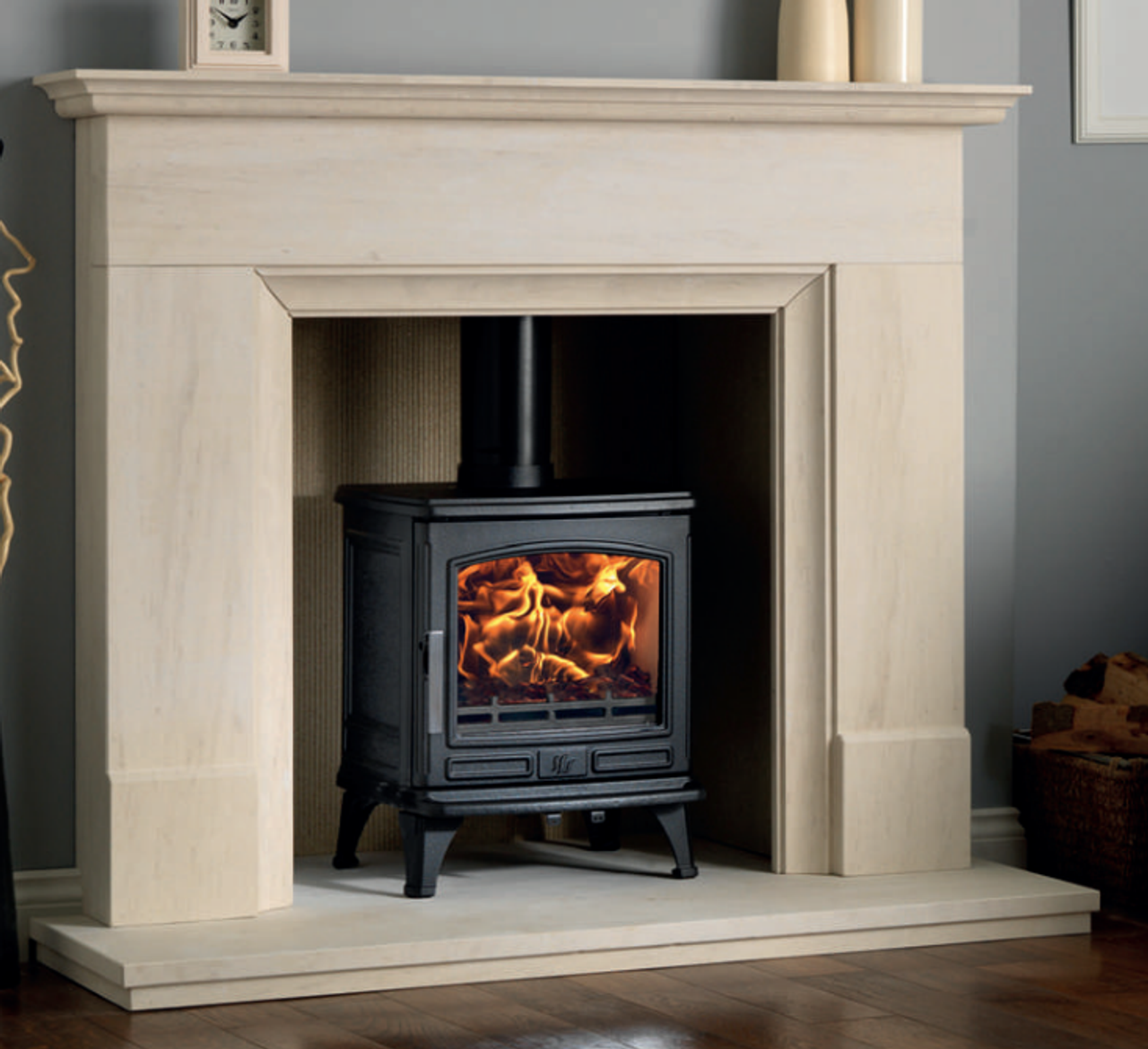

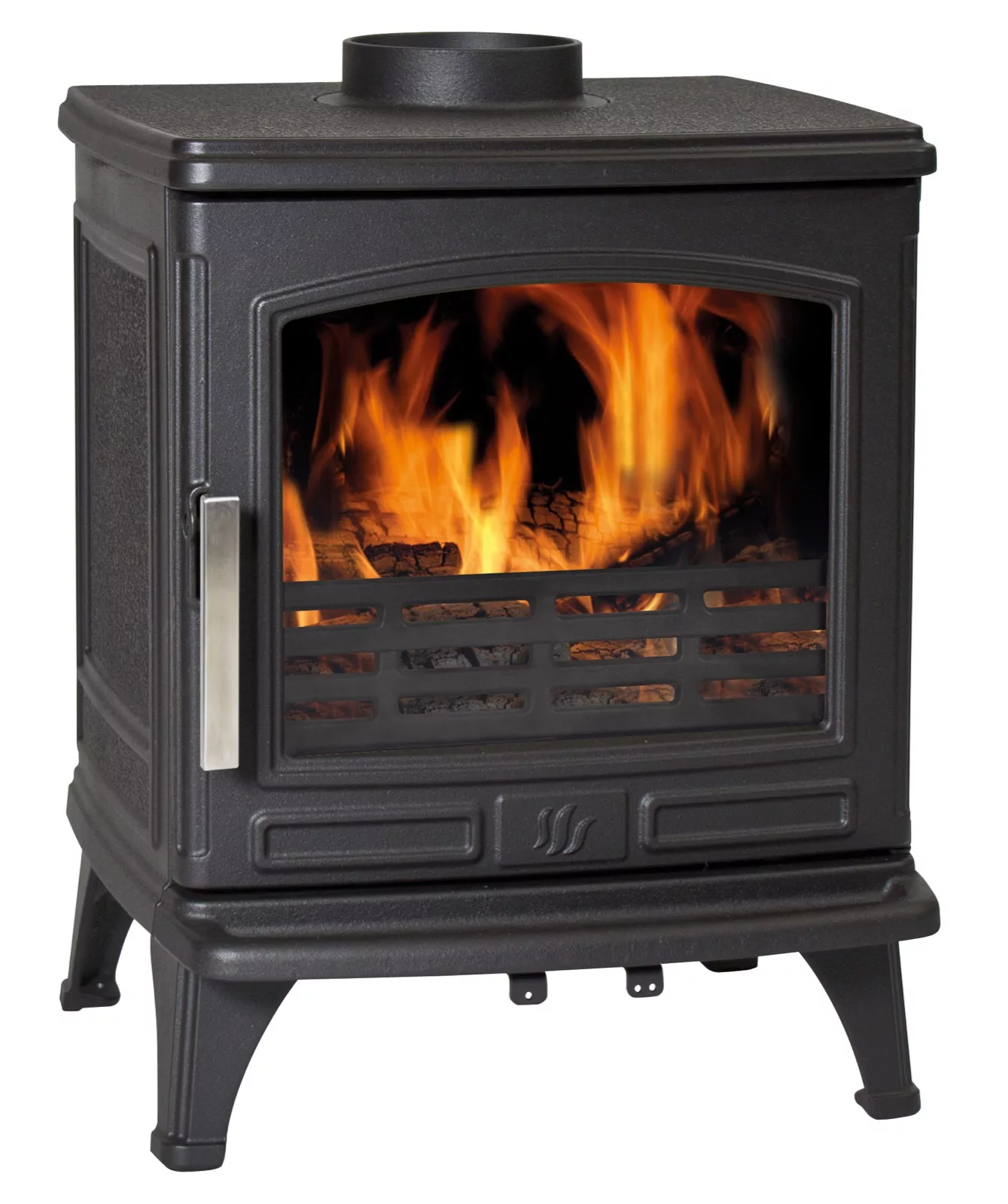

ACR Oakdale Multi-Fuel Stove
Traditional styling. Modern efficiency. Flexible fuel choice.
The ACR Oakdale is a classic multi-fuel stove with elegant detailing and a timeless design, making it perfect for both period properties and traditional-style interiors. Built from robust cast iron, it delivers excellent heat retention and long-lasting durability while offering the flexibility to burn seasoned wood or approved smokeless fuels.
With a nominal output of 5 kW, the Oakdale is ideal for small to medium-sized rooms. It’s Ecodesign 2022 Ready for ultra-clean combustion and DEFRA approved, meaning it can be used in smoke control areas across the UK.
The large arched glass window provides a superb view of the flames, kept clear by a powerful airwash system, and the multi-fuel grate makes switching between wood and smokeless fuel effortless.
🔥 Key Features:
-
5 kW nominal output – ideal for small to medium rooms
-
Multi-fuel design – burns wood and smokeless fuels
-
Ecodesign 2022 Ready – clean, efficient burning
-
DEFRA approved – suitable for smoke control areas
-
Large arched glass window for an excellent flame view
-
Airwash system to keep glass clear
-
Top or rear flue outlet options
-
Durable cast iron construction
-
10-year manufacturer’s warranty
📐 Dimensions:
| Measurement | Size (mm) |
|---|---|
| Height | 570 mm |
| Width | 510 mm |
| Depth | 370 mm |
| Flue Diameter | 125 mm (5″) |
| Weight | 80 kg |
⚙️ Technical Overview:
| Feature | Specification |
|---|---|
| Fuel Type | Multi-fuel (wood & smokeless fuels) |
| Nominal Output | 5 kW |
| Output Range | 3–6 kW |
| Efficiency | 78% |
| Energy Rating | A |
| Ecodesign Ready | Yes |
| DEFRA Approved | Yes |
| Flue Outlet | Top or rear (125 mm) |
| Max Log Length | 400 mm |
| Warranty | 10 years |
🏡 Perfect For:
-
Traditional homes and cottages
-
Customers wanting classic styling with modern efficiency
-
Urban or rural homes needing multi-fuel flexibility
-
Small to medium living spaces
📞 We supply and install the ACR Oakdale with full flue systems, hearths, and chamber designs. Contact us for pricing, lead times, and installation packages.
Product Details
information
| KW Output | 5 |
| Multifuel | Yes |
| Efficiency | 76.3% gross 83.8% nett |
| Energy Rating | A+ |
| Height | 550mm |
| Width | 440mm |
| Depth | 370mm |
| Weight | 90kg |
| Nominal Output | 5kw nominal (2.5Kw min / 6Kw max) |
